德耐纳米科技(越南)有限公司 – 展位号 337
INTRODUCTION – 介绍
Denai Nano Technology (Vietnam) Co., Ltd., formerly established in 2012 as Suzhou Denai Nano Technology Co., Ltd., brings over 12 years of specialized expertise in PVD hard coatings. As a leading coating solution provider, the company operates 10 branches nationwide, forming an integrated multi-site production and service network. Annual revenue exceeds RMB 100 million, maintaining a consistent growth rate of over 30% for eight consecutive years.With a dedicated R&D center and production bases strategically located across key industrial hubs—including Suzhou, Ningbo, Qingdao, Chongqing, Guangdong, Tianjin, and Jinan—Denai ensures robust multi-site delivery capabilities and high supply chain resilience. Our core technologies and products are widely applied in high-tech sectors such as tooling and molds, medical devices, automotive, cutting tools, semiconductors, and new energy.In terms of quality and technical performance, Denai’s PVD coatings offer five core competitive advantages:High smoothness & low frictionExceptional hardness & high temperature resistanceExcellent mold release propertiesOutstanding biocompatibilitySignificant tool and component life extensionLeveraging a diversified regional footprint, solid financial health, and cutting-edge surface treatment technologies, Denai Nano delivers superior large-scale customized processing and a highly reliable supply chain guarantee.
德耐纳米科技(越南)有限公司的前身为成立于2012年的苏州德耐纳米科技有限公司创立于 2012 年，拥有 12 年以上专注于 PVD 纳米涂层服务的丰富经验。作为一家实力雄厚的专业涂层解决方案供应商，公司在全国设立了 10 家分公司，建立起覆盖多地的协同生产与服务网络，年营业额已突破 1 亿元人民币，且连续 8 年保持 30% 以上的高速增长。德耐纳米拥有强大的多地交付能力与抗风险能力，其研发中心与生产基地广泛分布于苏州、宁波、青岛、重庆、广东、天津及济南等核心工业城市。公司核心产品与技术广泛应用于模具、医疗、汽车、刀具、半导体及新能源等众多高精尖行业。在产品质量与技术特性上，德耐纳米的 PVD 涂层具备以下五大核心竞争优势：高光滑低摩擦、高硬度耐高温、易脱模、优异的生物兼容性以及能显著延长工件的使用寿命。凭借多元化的区域布局、稳健的财务状况和顶尖的表面处理工艺，德耐纳米展现出卓越的规模化定制加工能力与可靠的供应链保障实力。
BUSINESS AREAS – 业务领域
Mold Making & PVD Coating
模具加工、金属零件纳米涂层
PRODUCTS – 产品

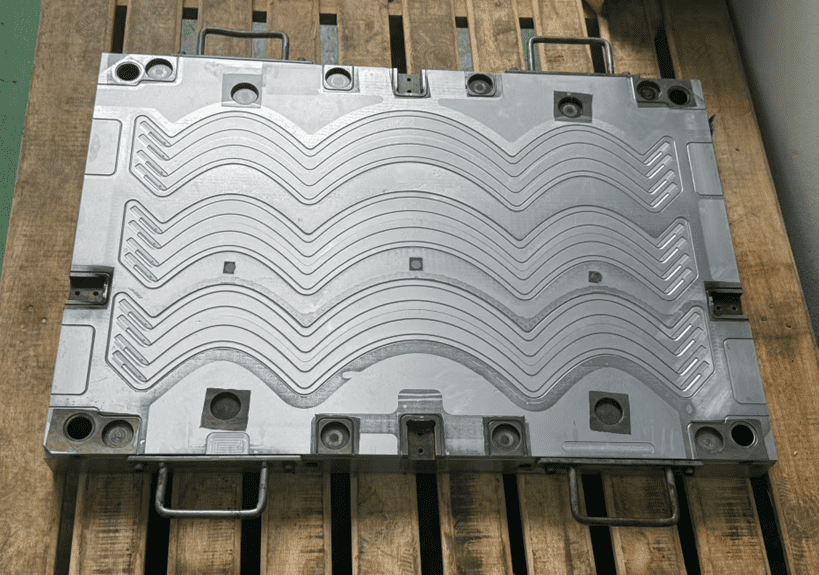

1. AlCrN (Aluminium Chromium Nitride) Coating – 氮化铝铬涂层 (AlCrN)
Coating Characteristics: Better high-temperature oxidation resistance. Significantly increases mold and die lifespan. Supports dry cutting to improve cutting parameters and boost production efficiency. Coating microstructure can be tailored to achieve desired properties.
Coating Parameters:
• Color: Dark grey
• Hardness: 3200 HV
• Friction Coefficient: 0.35
• Elements: Al, Cr, N
• Thickness: 2 – 5 µm
• Maximum Temperature: 1000°C

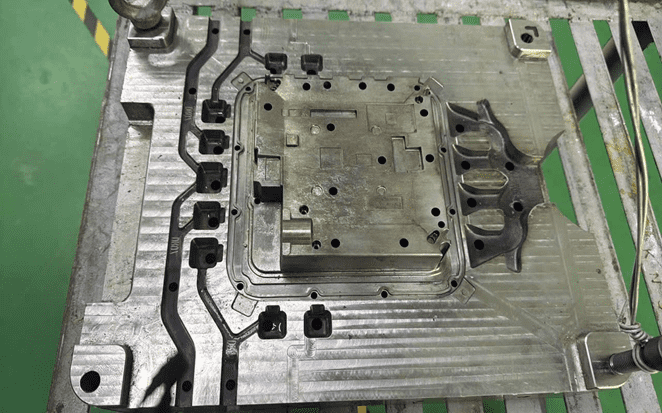

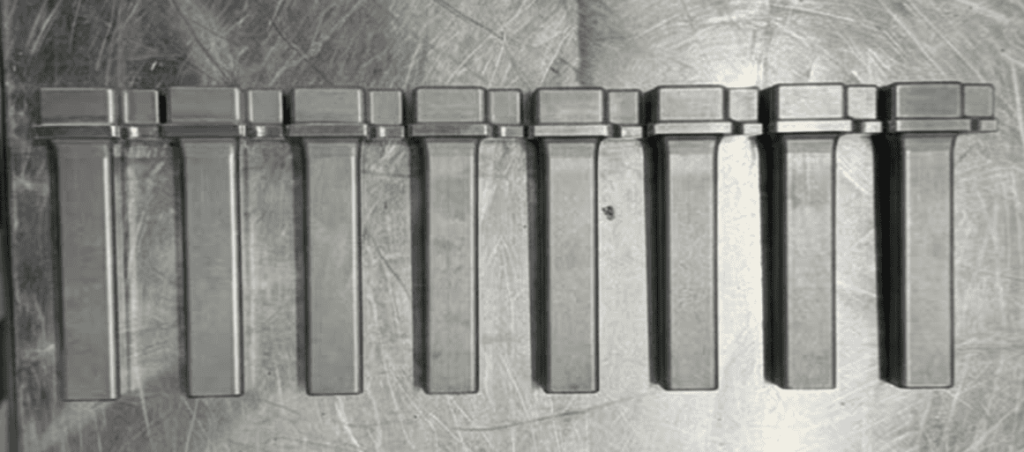

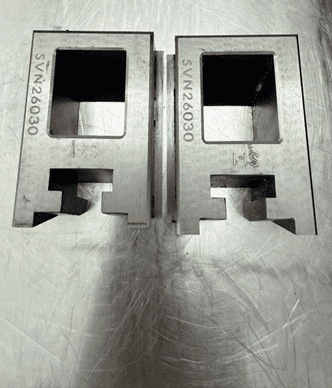

Application Areas: Aluminum die casting mold cores. Punch pins, cross punches, etc. Gear hobbing cutters, milling cutters. Stamping and deep drawing of high-strength automotive steel sheets. Steel stamping for thick sheet materials.
涂层特点： 更加耐高温氧化。大幅提高模具寿命。可干式切削提高切削参数，提升生产效率。可以调整膜层的组织结构，达到想要的效果。
涂层参数：
• 涂层颜色：黑灰色
• 涂层硬度：3200HV
• 摩擦系数：0.35
• 涂层元素：Al, Cr, N
• 涂层厚度：2-5µm
• 适用温度：1000°C 应用领域： 铝压铸模芯。冲棒，十字冲等。滚齿刀，铣刀。高强度汽车板材的冲压拉伸。厚板料的钢材冲压。

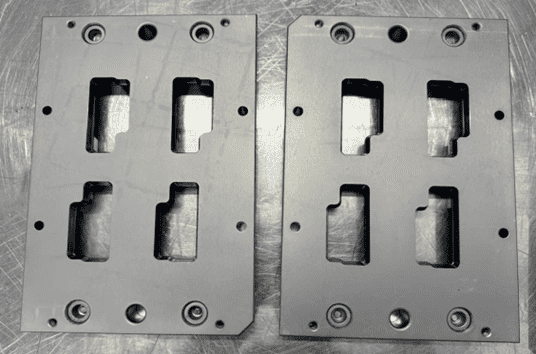

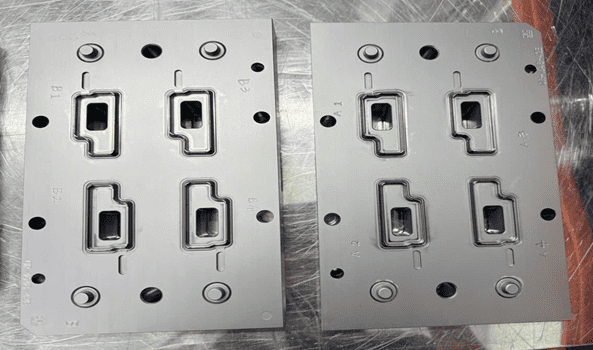

2. Diamond-Like Carbon (DLC) – 类金刚石涂层 (DLC)
Coating Characteristics: Extremely low surface friction coefficient; capable of forming a self-lubricating transfer film on the product surface. Possesses inherent diamond structures resulting in high hardness. Meets medical implant standards with excellent biocompatibility with the human body. Low chemical affinity, highly suitable for processing materials like copper, aluminum, etc. Low process temperature. Able to deposit thin films on various steel substrates. Excellent electrical insulation properties.
涂层特点： 极低的表面摩擦系数，可以在产品表面形成自润滑摩擦幅。因含有金刚石结构硬度高。符合医疗植入标准，与人体生物兼容性好。化学亲和性低，可用于加工铜、铝等材料。工艺温度低。可在各种钢材表面成膜。绝缘性。
\
Coating Parameters:
• Color: Black
• Hardness: 2200 HV
• Friction Coefficient: 0.15
• Elements: C
• Thickness: 0.5 – 3 µm
• Maximum Temperature: 350°C
a
a

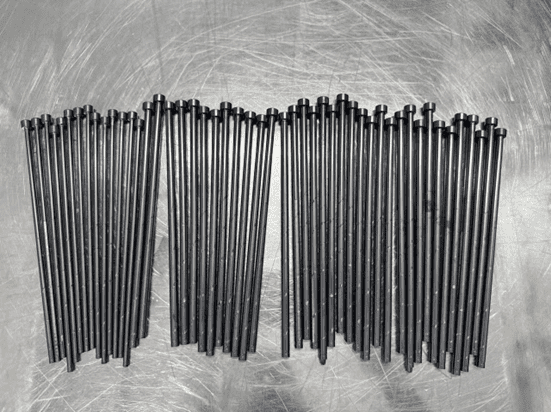

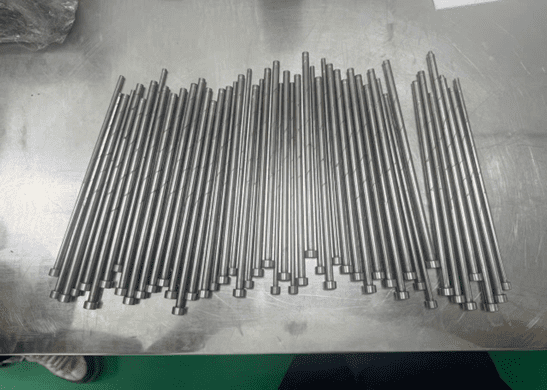

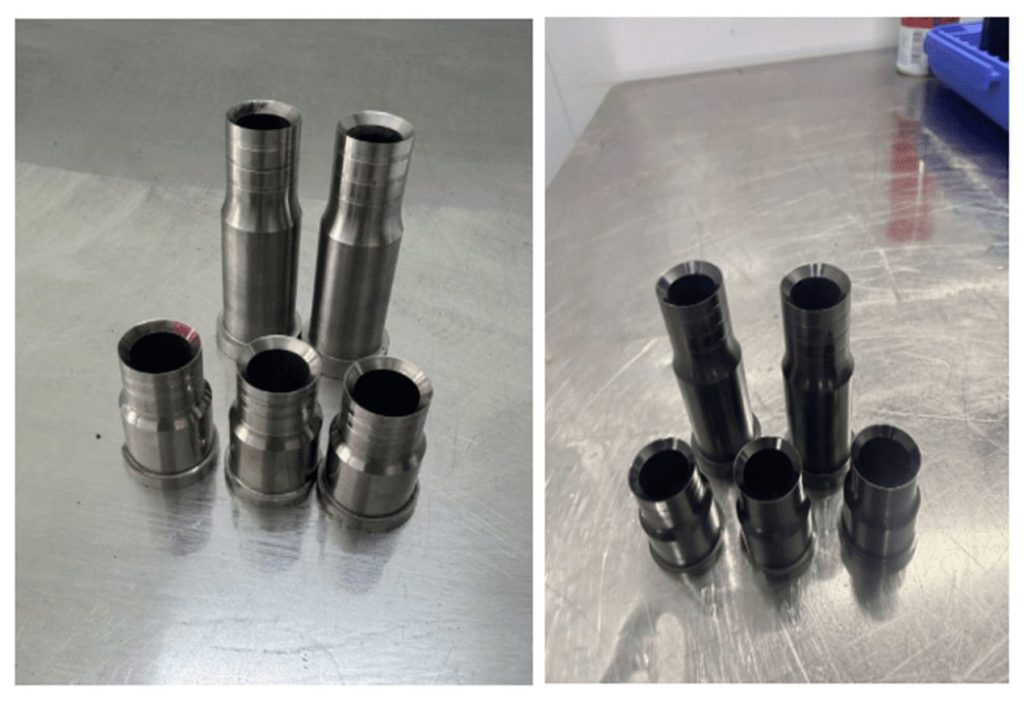

Application Areas: Non-ferrous metal cutting tools. Measuring tools/gauges. Wear-resistant components (bearings, ejector pins). Textile equipment and components. Aerospace industry. Medical devices and implants. Precision semiconductor molding dies. Surface hardening for beryllium copper, aluminum alloys, etc.
a
涂层参数：
• 涂层颜色：黑色
• 涂层硬度：2200HV
• 摩擦系数：0.15
• 涂层元素：C
• 涂层厚度：0.5-3µm
• 适用温度：350°C
应用领域： 有色金属切削工具。量工具。磨损零部件（轴承、顶杆）。纺织设备及零部件。航空航天。医疗器械、植入物。精密半导体成型模具。铍铜、铝合金等表面加硬。
a

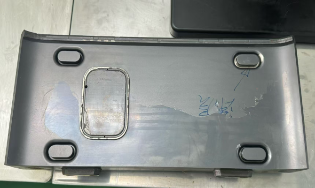

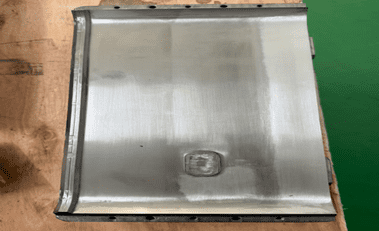

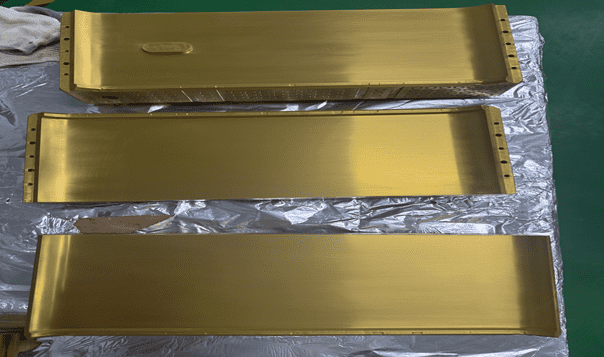

3. TiN (Titanium Nitride) Coating – 氮化钛涂层 (TiN)
a
Coating Characteristics: High hardness, improves the surface hardness of the material. Reduces chemical affinity of the material. Prevents sticking damage during processing, enhancing the anti-wear performance of the material. Coating Parameters:
• Color: Golden yellow
• Hardness: 2300 HV
• Friction Coefficient: 0.4
• Elements: Ti, N
• Thickness: 2 – 6 µm
• Maximum Temperature: 600°C
Application Areas: Conventional cutting tools. Automotive components. Medical devices. Conventional plastic injection molds and standard components. Low-hardness and thin-walled sheet stamping. Food industry.
涂层特点： 硬度高，提高材料表层硬度. 降低材料的化学亲和性. 防止加工中的粘着损伤，提升材料抗磨损性能.
涂层参数：
• 涂层颜色：金黄色
• 涂层硬度：2300HV
• 摩擦系数：0.4
• 涂层元素：Ti, N
• 涂层厚度：2-6µm
• 适用温度：600°C
应用领域： 普通刀具. 汽车零部件. 医疗器械. 常规注塑模具及标准件. 低硬度、薄壁冲压. 食品行业.

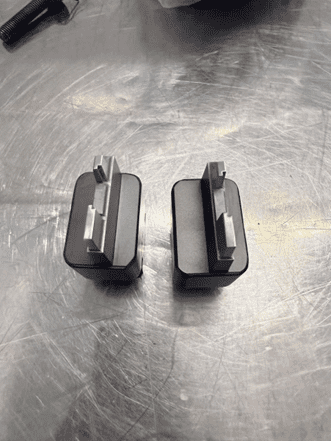

4. PS-C Nano PVD Coating – PS-C纳米PVD涂层
a
Coating Characteristics: Exceptional anti-galling and anti-sticking properties during molding. Ultra-low surface friction coefficient, significantly enhancing product demolding and ejection efficiency. Minimizes the use of mold release agents and shortens cycle time to increase production output. Outstanding anti-wear and anti-scratch resistance for mold cavities.
Coating Parameters:
• Color: Characteristic black (or dark grey)
• Hardness: 2500 HV
• Friction Coefficient: 0.15
• Elements: C, Si (customized)
• Thickness: 0.5 – 4 µm
• Maximum Temperature: 500°C

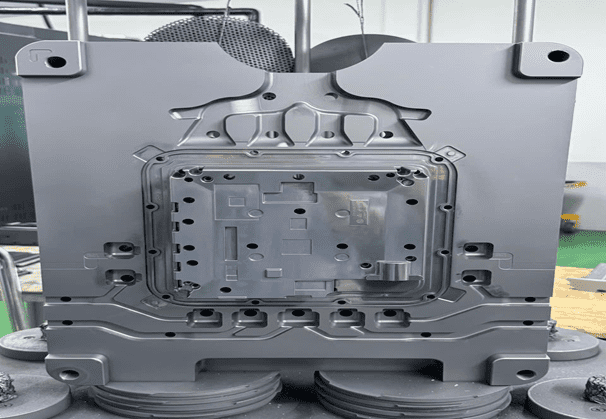

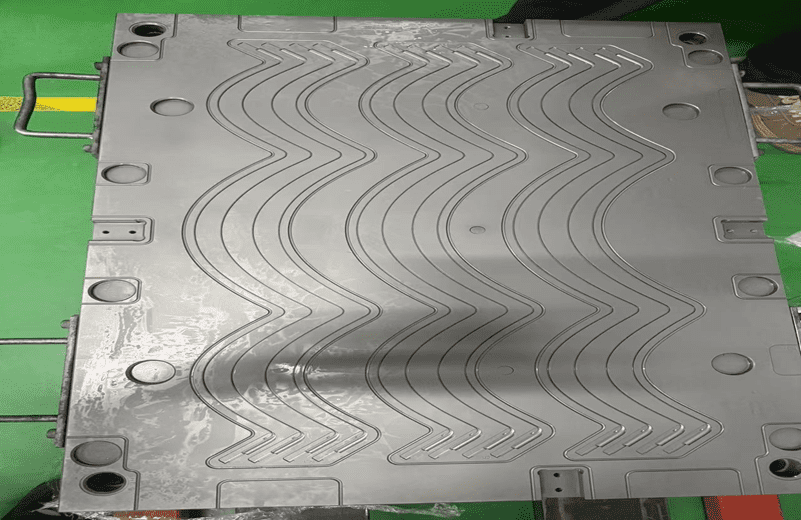

Application Areas (For Anti-sticking Molds): Plastic injection molds (especially glass-filled plastic). Die casting molds (Aluminum, Zinc alloys). Stamping, drawing, and forming dies. Mold cavities requiring high ejection efficiency.
涂层特点： 在注塑/压铸过程中具备绝佳的防材料粘附性能。极低的表面摩擦系数，使产品极易脱模，显著提高脱模效率。大幅减少脱模剂的使用，缩短生产周期并提高产量。有效防止模腔磨损与划伤。
涂层参数：
• 涂层颜色：黑色（或深灰色）
• 涂层硬度：2500 HV
• 摩擦系数：0.15
• 涂层元素：C, Si（定制）
• 涂层厚度：0.5 – 4 µm
• 适用温度：500°C
应用领域（用于防粘模)：
注塑模具（特别是加玻纤塑料）。压铸模具（铝、锌合金）。冲压拉伸模具、成型模。要求高效脱模的模腔及配件。
a

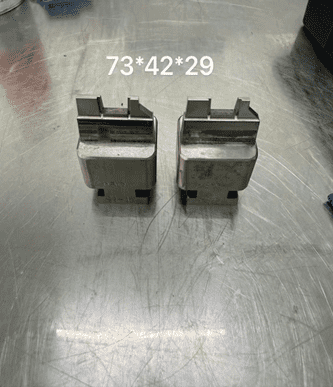

5. CrN (Chromium Nitride) Coating – 氮化铬涂层 (CrN)
Coating Characteristics: Excellent corrosion resistance, significantly improving material durability under corrosive environments. Outstanding anti-wear and anti-scratch resistance. Optimizes tribological performance of components. Low chemical affinity. Minimizes sticking tendency, enhancing product demolding efficiency. Surface Application: Specially used for surface protection of mirror-polished surfaces and textured product surfaces. Environmentally friendly coating process with no hazardous Cr valence ions produced.
Coating Parameters:
• Color: Silver-grey
• Hardness: 1800 HV
• Friction Coefficient: 0.35
• Elements: Cr, N
• Thickness: 2 – 6 µm
• Maximum Temperature: 700°C
Application Areas: Sliding friction components. High mirror-finish molds. Automotive piston rings. Plastic injection mold cavities and sliding accessories.
涂层特点： 优异的耐腐蚀性，提高材料在腐蚀环境下的耐受性能。优异减磨耐损涂层。提高部件的摩擦学性能。低化学亲和性。易于与常规材料剥离，提高产品的脱模性能。 应用于表面： 用于镜面及蚀纹面产品表面保护。材料获得过程中环保，不会有价键Cr离子。
a
涂层参数：
• 涂层颜色：银灰色
• 涂层硬度：1800 HV
• 摩擦系数：0.35
• 涂层元素：Cr, N
• 涂层厚度：2 – 6 µm
• 适用温度：700°C
应用领域： 滑动摩擦部件。高镜面模具。汽车活塞环。注塑模具型腔及滑动配件。
