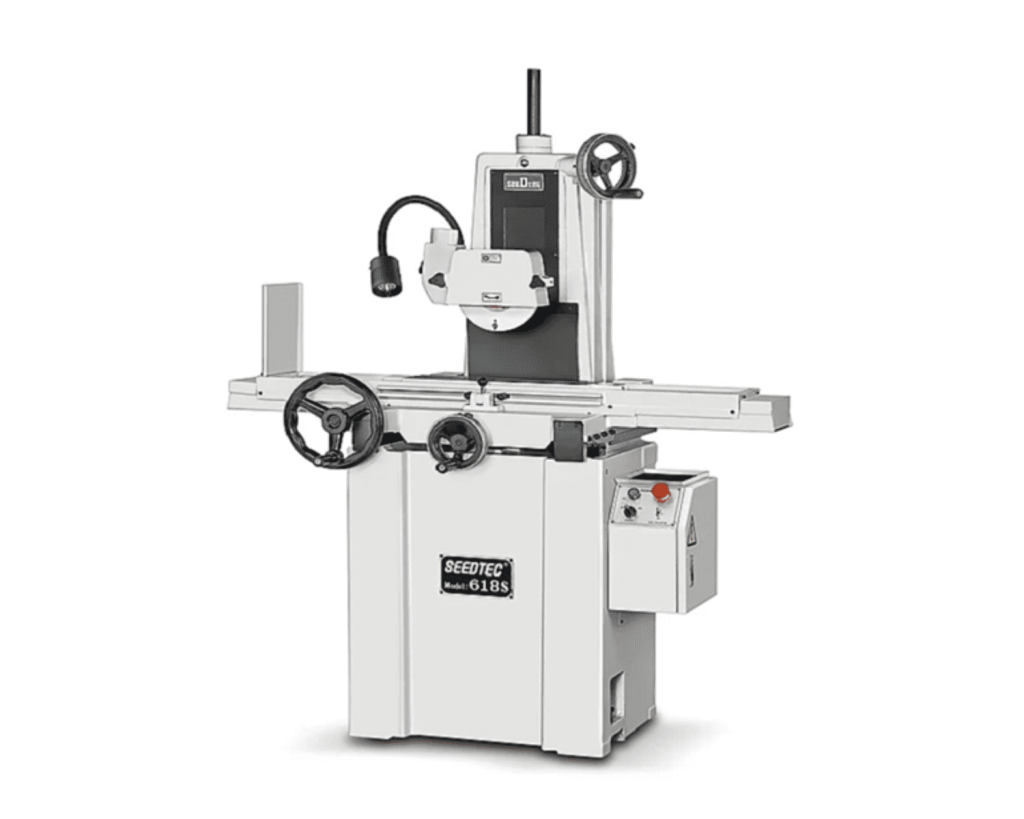

Main feature

• Accuracy
  Table surface guaranty: 2μ
  Down feed (minimum unit) : 5μSpindle & motor
  V3 grade low vibration spindle motor.
  Cartridge-type spindle: 1 roller bearing at front and 2 angular contact ball bearings at rear side of spindle.
  •Hydraulic design
  Longitudinal by advanced table hydraulic design, feed range from 1m/min to 25m/min, it provides easy operation and vibration-free reversing motion and controlled by the proximity sensor built-in design for safety.
  •Lubrication
  Automatic and central lubrication system.

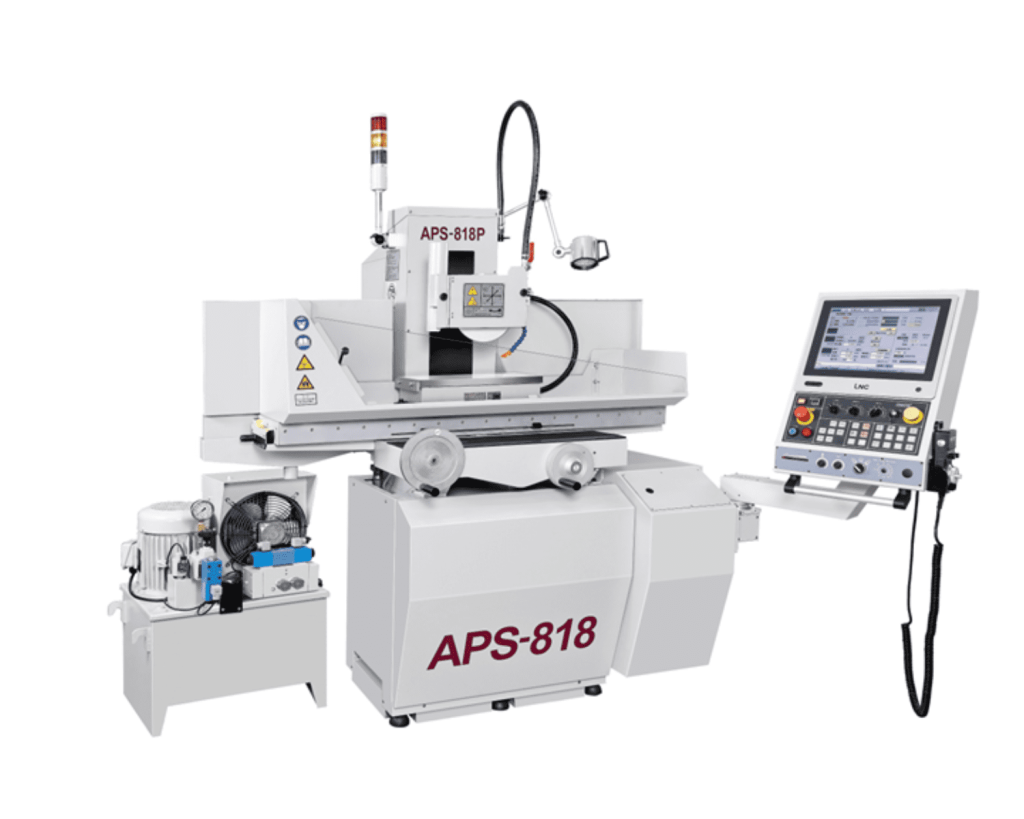

Main feature

• Accuracy
  Table surface guaranty: 2μ(618/818), 3μ(12xx/16xx series), 5μ(1640)
  Downfeed(minimum unit) : 1μ
• Spindle & motor
  Vertical driven by AC servo motor.
  V3 grade low virbration spindle motor.
  Direct drive spindle, 4 angular contact ball bearings at front, 2 angular contact ball bearings at rear side of spindle.
• Cross and Longitudinal
  Cross and longitudinal are driven by servo motor.(S)
  Cross driven by servo motor and longitudinal driven by hydraulic.(P)
  Longitudinal by advanced table hydraulic design, feed range from 1m/min to 25m/min, it provides easy operation and vibration-free reversing motion and controlled by the proximity sensor built-in design for safety.(P)
• Base & slide ways
  Linear guide way with extra-large block for vertical axis.
  Cross double V and longitudinal V& flat, and TURCITE B coated with hand scraped, 2 axes are box ways.
  One-piece casting base and slide way.

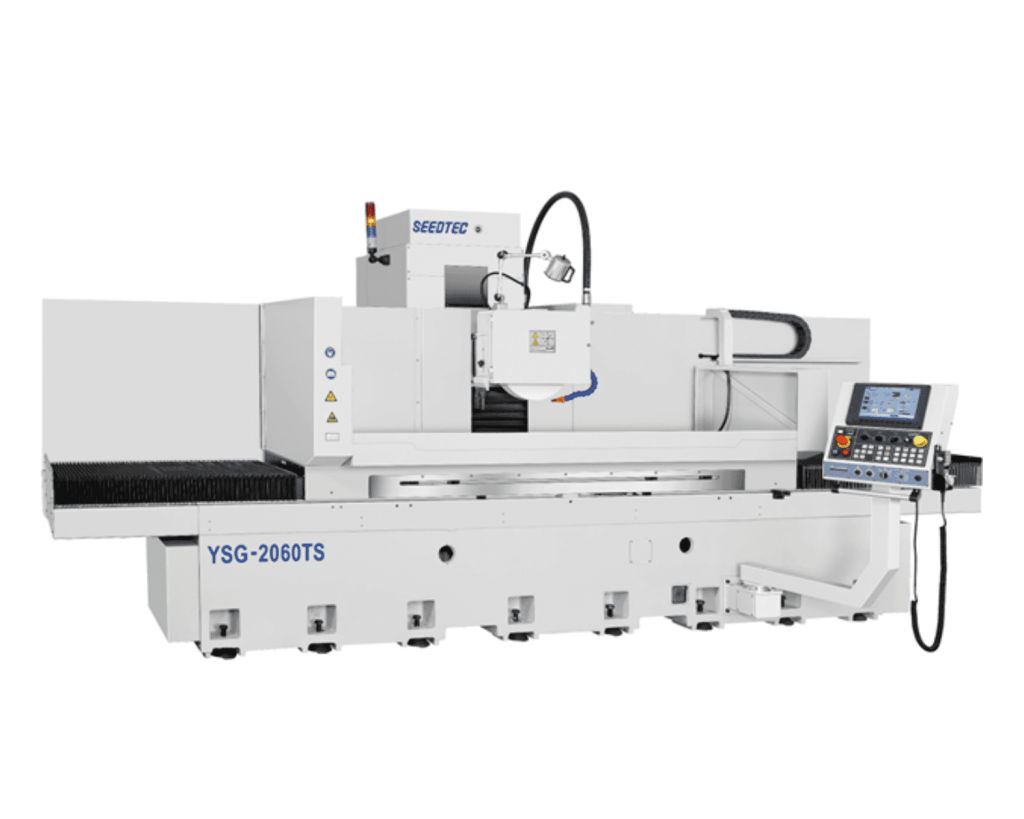

Main feature
Accuracy
Table surface guaranty : 5μ
Downfeed(minimum unit) : 1μ

• Spindle & motor
  Vertical driven by AC servo motor.
  15HP V3 grade low virbration spindle motor.
  Direct drive spindle: 4 angular contact ball bearings at front, 2 angular contact ball bearings at rear side of spindle.
• Cross and Longitudinal
  Cross feed driven by simplified AC servo motor, it’s more precise when intermittent feed.(TS)
  Cross feed driven by AC servo motor. (P)
  Double hydraulic cylinders drive with variable speed regulator for longitudinal.
  Longitudinal by advanced table hydraulic design, feed range from 0.5m/min to 25m/min, it provides easy operation and vibration-free reversing motion and controlled by the proximity sensor built-in design for safety.
• Base & slide ways
  Linear guide ways for vertical and cross axes with extra large block.
  Longitudinal double V, and TURCITE B coated with hand scraped
  One-piece T shape casting base and slide way.
