1. PTFE AIR HOSE

Applications:
for solids such as dust, powder, fibre and chip
for gaseous media such as vapors and smoke
for food and pharmaceutical industry
for chemical industry
Construction:
PTFE mechanically clamped into metal band
Material:
wall: PTFE coated fiberglass
clamp profile: stainless steel

Properties:
light-weight
kink-proof
anti-adhesive
small bending radius
strongly clamp into the wall
odorless and tasteless
good resistance to high temperature
good resistance to alkalis, acids and chemicals
good resistance to UV and ozone
flame-retardant according to UL94-V0
Temperature Range:
-70°Capprox. to +250°C approx.
Specification:
ø 51 to ø 305 mm

Applications:
for high temperatureenvironment and equipment
temperature-resistant to 400 °C approx.
for semiconductor, chemical,electronics, wafer processing, LCD
high-winding
Construction:
wall thickness: 0.05mm

Properties:
low cost
micro-bend, easy to construct
high temperature resistant
Temperature Range:
-70°Capprox. to +400°C approx.
Specification:
ø 51 to ø 254 mm

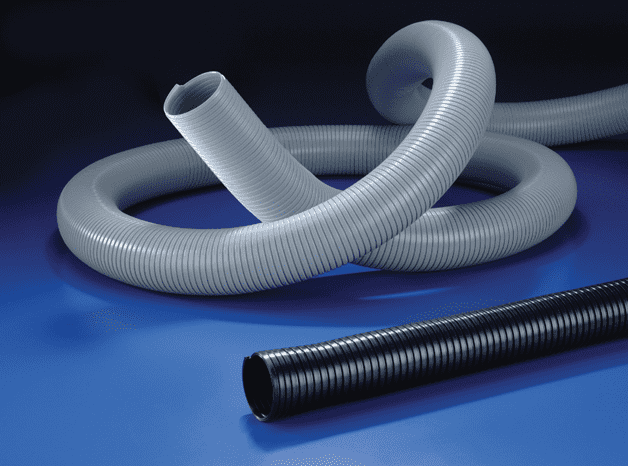

Applications:
for air, fume extraction and liquid supply under low pressure
for conveyance of powder, granules and dust extraction
for wood dust extraction
portable air conditioner venting hose
Construction:
interlocking rigid PVC profile by rigid PVC
Material:
rigid PVC
Standard Color:
grey and black

Properties:
self-supporting
simple increase or reduction of size
jointing of lengths
good resistance to acids, alkalis, and chemicals
maintain shape
flame-retardant according to UL94-HB
Temperature Range:
-10 °C approx. to +70 °C approx.
Specification:
ø 51 to ø 200 mm
