INTRODUCTION

ADESIGN addresses production improvement requirements through automation solutions with the criteria of simple, stable, and efficient operations. The company affirms its expertise in designing and manufacturing automated machines for major clients in the automotive, motorcycle, electronics, and consumer goods assembly industries. ADESIGN is always dedicated to customers and shares with partners a competitive, united, and harmonious community for sustainable development.

BUSINESS AREAS

• Design, manufacture and install automation systems for production lines.
• Research and develop improvements to industrial production lines and systems.
• Supply of materials, automatic equipment, sensors, and precision measurement solutions.
• Maintenance, repair, improvement and upgrading services for machinery in production lines.

PRODUCTS

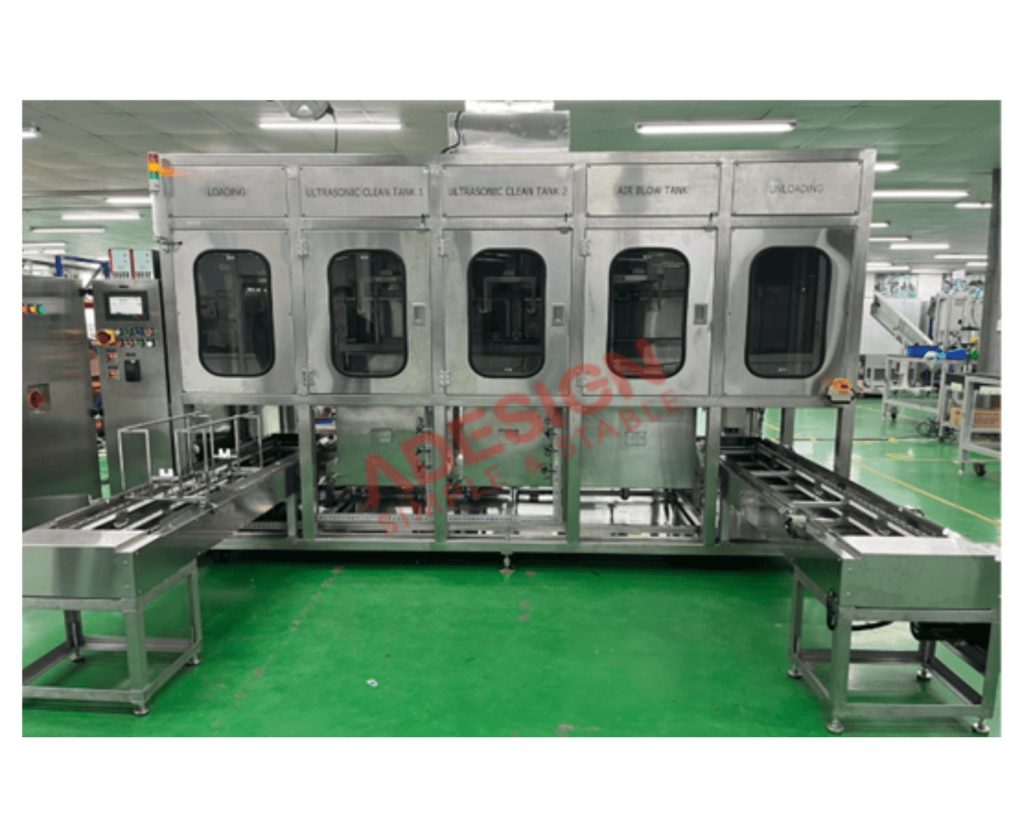

1. ULTRASONIC WASHING MACHINE FOR SPACER & BAREL

Introduction
The Ultrasonic Cleaning and Drying Machine for Spacer & Barrel uses ultrasonic waves to create powerful vibrations in water, effectively removing dust, oil, and residues from product surfaces. The system is fully automated with PLC control and an HMI touch screen, allowing easy setup of the cleaning and air-drying process according to production needs.

Technical Specifications

• Products: Housing camera
• Capacity: Barrel – 1,200 pcs/hour; Spacer – 12,000 pcs/hour
• Other parameters: Frequency – 40 kHz; – Temperature – 30–50°C; Cleaning solution – DI water
• Power supply: 3P–200 VAC, 20 kVA
• Control system: PLC, HMI
• Dimensions (L×W×H): 3300 × 3100 × 2150 mm

Applications

• Precision mechanical manufacturing
• Production of electronic components, automotive and motorcycle parts, and medical devices
• Factories requiring part cleaning after machining or before assembly

Benefits

• High cleaning efficiency: Uniform cleaning without surface scratches
• Integrated air-drying function: Products are completely dry and ready for the next process
• Time and labor saving: Automated operation with high throughput
• Safe and eco-friendly: Uses DI (deionized) water, non-polluting
• Easy operation: Adjustable temperature (30–50°C) and cleaning time via touch-screen control
• Durable and stable: 3P–200 VAC power supply, 20 kVA capacity, overall size 3300 × 3100 × 2150 mm — suitable for continuous industrial production

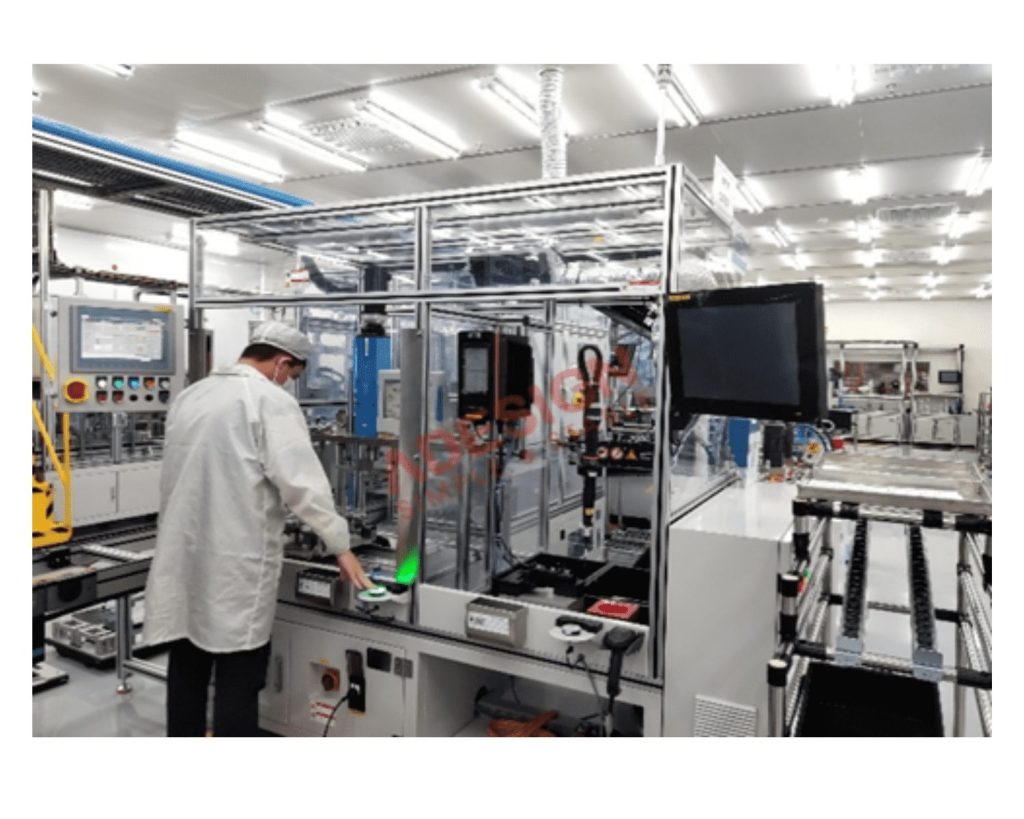

2. PRESS MOUNTING OF PLATE FOR IBGT DRIVE

Introduction
The IGBT Pin Pressing and Inspection Machine is a specialized equipment used in the production of high-power electronic components. It performs precise pin pressing and inspection to ensure product quality, stability, and data traceability throughout the manufacturing process. Integrated with advanced technologies such as the Kistler 5kN servo press, Cognex camera, and MES (Manufacturing Execution System), the machine enables full process control and quality assurance.

Technical Specifications

• Power supply: 3P – 380V, 50Hz
• Air pressure: 0.4 – 0.6 MPa
• Maximum pressing force: 5 kN
• Set pressing force: 2.88 kN
• Stroke: 200 mm
• Post-press position tolerance: ±0.1 mm
• Cycle time: 81 seconds/product
• Pressing unit: Kistler
• Inspection system: Cognex camera
• Data management system: MES
• Machine dimensions (L×W×H): 2350 × 2165 × 2100 mm

Applications

• Production of high-power electronic components (IGBT, MOSFET, power modules)
• Manufacturing of electric vehicles, solar energy systems, and industrial control devices
• Production lines requiring strict tolerance and pin positioning control

Benefits

• High precision: Controls pressing force, tolerance, and pin height with exceptional accuracy, ensuring product reliability and durability.
• Optimized production process: MES monitors real-time production data, enabling analysis, tracking, and performance improvement.
• Reduced defects and maintenance costs: Automatic inspection with Cognex cameras detects pin height deviations early, minimizing rework and downtime.
• Full traceability: MES records all pressing and inspection data, allowing complete tracking and quality evaluation of each IGBT board.
• Enhanced productivity and stability: Kistler 5kN servo press ensures consistent and precise operation for continuous production.

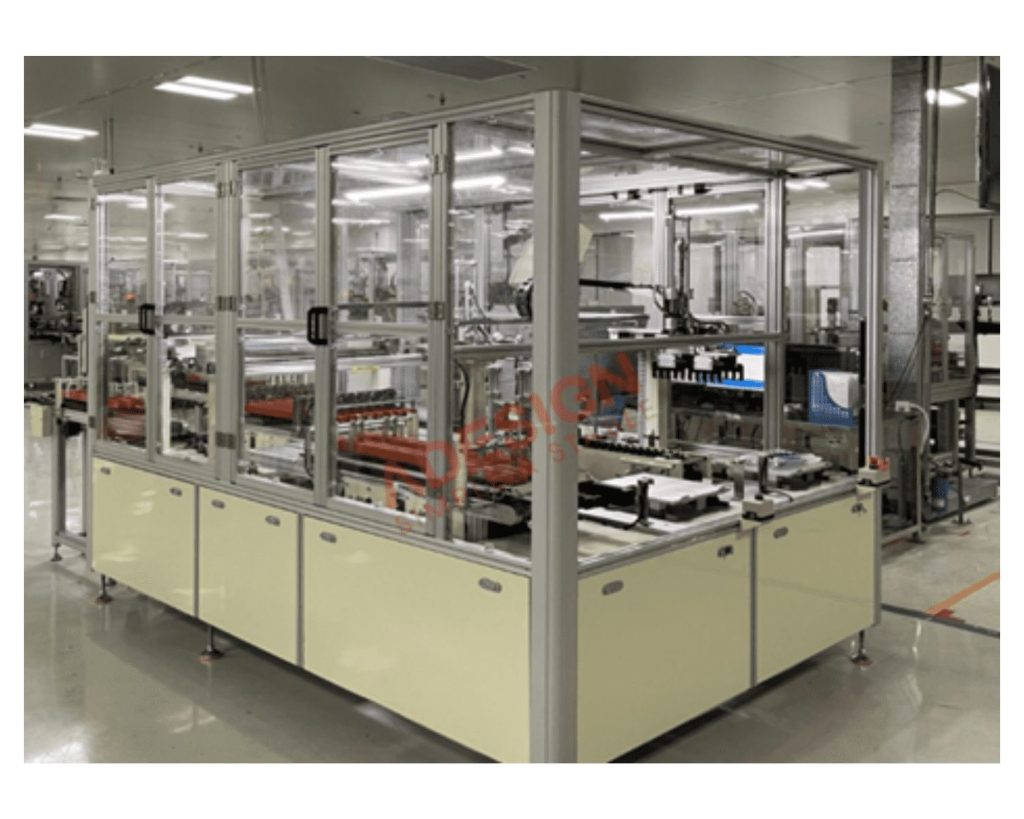

3. SORTING & GRADING CELL MACHINE

Introduction
The Battery Internal Resistance Testing and Sorting Machine is an automated device used to measure the open-circuit voltage (OCV) and internal resistance (IR) of each cell, then classify the cells by quality grade or eliminate defective cells (NG).
This equipment is applied in lithium battery production lines to ensure uniformity, stability, and safety of each cell before module or pack assembly, helping manufacturers achieve precise and efficient quality control.

Technical Specifications

• Model: 2 models – Cylindrical cell (12Ah), Prismatic cell (50Ah)
• Cycle time: 1.2s/pcs (Cylindrical cell), 6s/pcs (Prismatic cell)
• Power supply: 3-phase, 380V, 50Hz
• Air pressure: 0.4–0.6 MPa
• Specifications:
• Classifies batteries into 3 voltage levels
• Cognex barcode reader
• Hioki internal resistance tester
• Control system: Mitsubishi PLC
• Machine dimensions: 3100 × 2000 × 2200 mm

Applications:

• EV battery manufacturing (EVs, e-bikes, e-buses): Testing and sorting cells before pack assembly.
• Consumer electronics: Batteries for mobile phones, laptops, and tablets.
• Energy storage systems (ESS, UPS, solar batteries): Ensures cell quality and long-term stable performance.
• Industrial and electric vehicle sectors: Quality control in large-scale battery production lines.

Benefits

• Absolute output quality control: Measures and sorts batteries into grades A, B, and C; automatically rejects NG cells (OCV, IR, or barcode errors).
• High-volume production capability: Sorts multiple cells simultaneously, maintaining a short cycle time of 1.2s/pcs (cylindrical) and 6s/pcs (prismatic).
• Automated data management: All measurement results (barcode, OCV, IR, classification, cell status) are stored and transmitted directly to the MES system.
• Minimized human error: Grading, sorting, and cell-mixing processes are fully automated according to preset formulas.
• Flexible for multiple models: Supports batch management by date, lot, or production plant.
